Summary
Kit out your Nintendo Switch with these state-of-the-art controllers
Versatile, convenient & compact, there's no need to install any driver
Benefitting from a one-key connection, they're incredibly easy to handle
The high-quality battery can be used continuously for four hours – bonus!

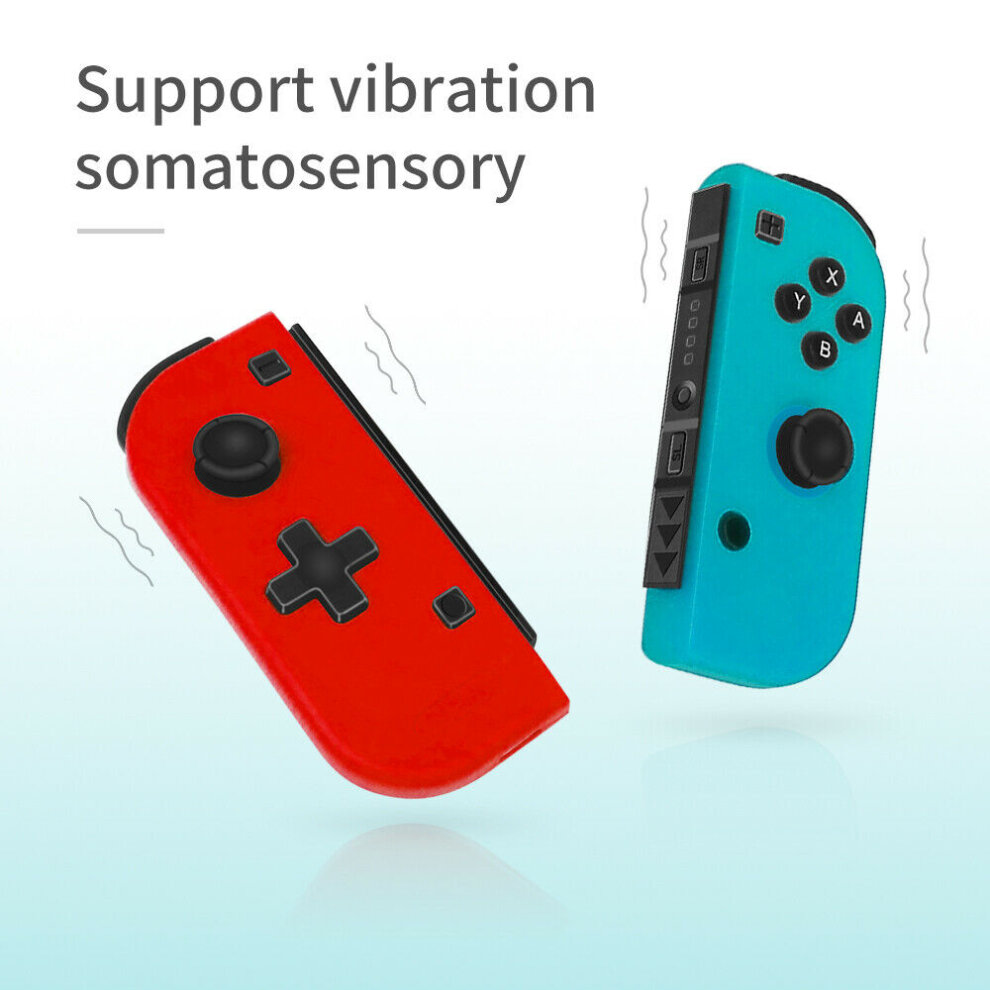

Showcasing an added vibration function, games are sure to be immersive
Wireless Pro Game Controllers Compatible With Nintendo Switch DescriptionManufacturer's description:

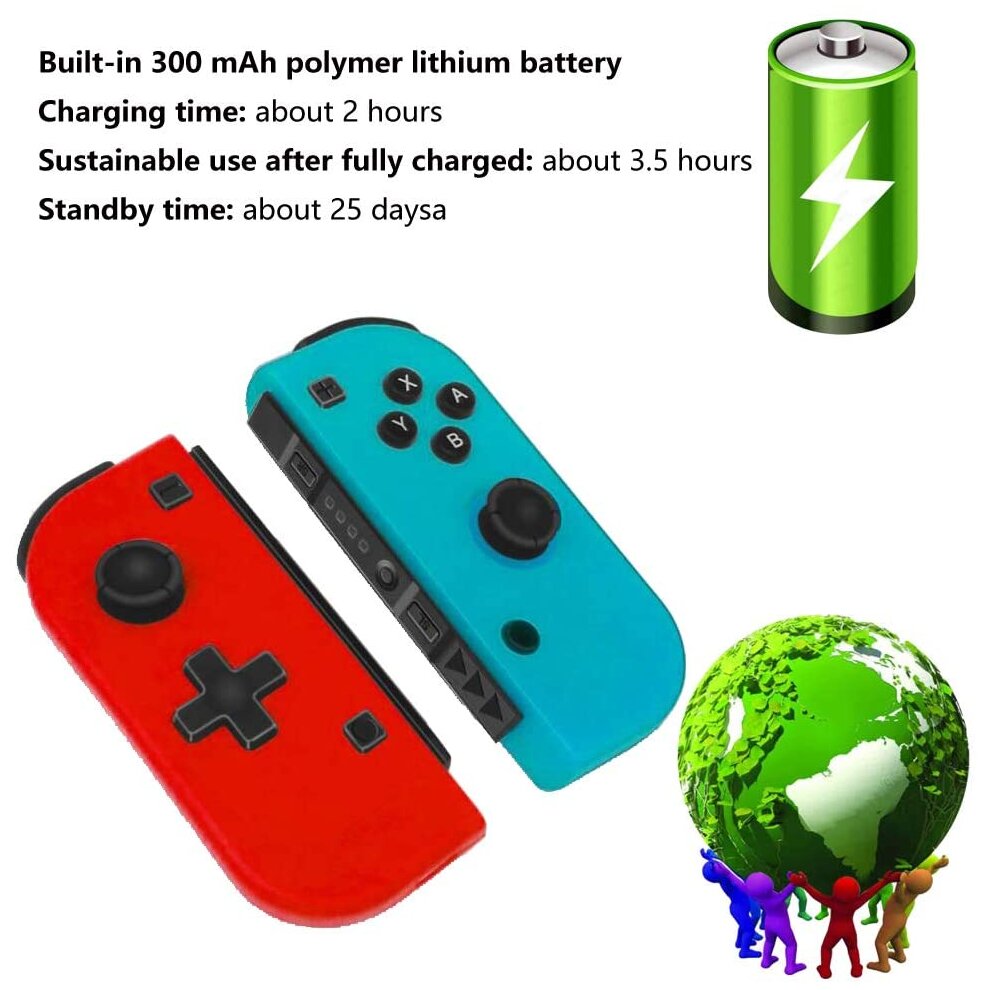

This pair of controllers is compatible with Switch consoles, and only supports a wireless connection. It can be used as one whole controller, or as two independent, meaning it's incredibly versatile and unique. There's noneed to install any driver, as it can be used once connected to Switch console, and there's a one-key connection method for ease of handling. Built with a 300mAh polymer lithium battery as standard, it can be used continuously for around four hours, aftera full charge.
These controllers support motion sensing function, via anin-built Gyro in each controller, and multiplayer games can be played by connecting more wireless controllers simultaneously to a Switch console. Its ergonomic design and lightweight construction make it comfortable, even for long hours of continuous gaming, and it can even be upgraded by update software through USB cable connecting to PC.
Connecting instructions (connecting to a Switch for the first time):
Power a Switch console on, on the main interface of the console, click (by using your finger) “Controllers” → “Change Grip/order” to come to this pairing pattern interface “Press L + R on the controller”, ignore “L +
R”, then operate controller according to the following steps as below

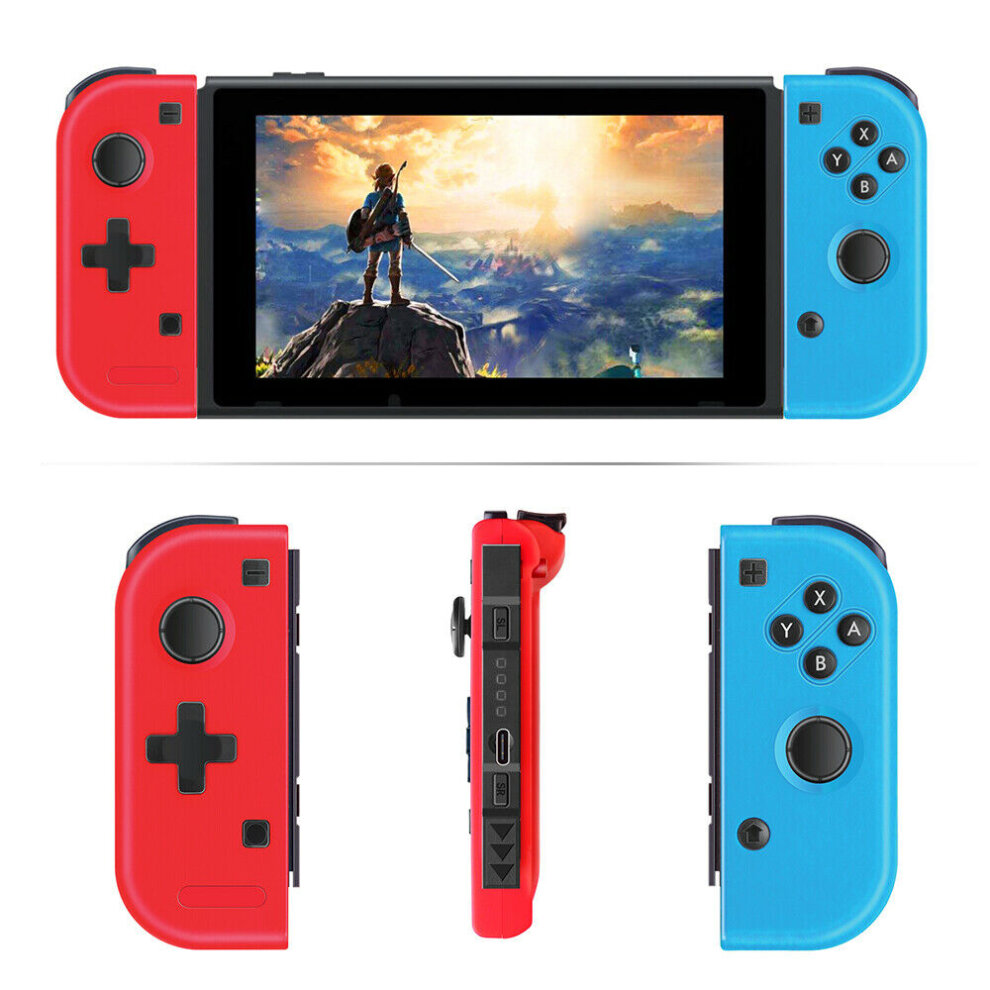

A. Connecting a pair of controllers (A Left Controller plus a Right Controller) as an Entire Controller
Step 1:Press “screenshot” key and hold for 4s to power a Left Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it means
that the controller is paired with the console successfully.
Step 2:Press “HOME” key and hold for 4s to power a Right Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it means that
the controller is paired with the console successfully.
Step 3:After the both controllers are paired with the console successfully, press “L1” key plus “R1” key simultaneously once, the corresponding LED(s) will be solid bright in each of the both controllers, it means that an
Entire Controller (a Left Controller + a Right Controller) is connected to the console successfully and ready to be used.
Step 4:Press “B” key to back to the main interface of the console.
B. Connecting a Left Controller as an independent controller
Step 1:Press “screenshot” key and hold for 4s to power a Left Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it meansthat the controller is paired with the console successfully.
Step 2:Press “SL” key plus “SR” key simultaneously once, the corresponding LED(s) will be solid bright in the Left Controller, it means that the Left Controller as an independent controller is connected to the console
successfully and ready to be used.
Step 3:Press “left of D-Pad” key to back to the main interface of the console
C. Connecting a Right Controller as an independent controller
Step 1:Press “HOME” key and hold for 4s to power a Right Controller on, four LEDs start blinking slowly then blinking quickly to enter searching status after 4s, when one (or more) of the LEDs is solid bright, it means that
the controller is paired with the console successfully.
Step 2:Press “SL” key plus “SR” key simultaneously once, the corresponding LED(s) will be solid bright in the Right Controller, it means that the Right Controller as an independent controller is connected to the console
successfully and ready to be used.
Step 3:Press “A” key to back to the main interface of the console.
Connecting to a paired Switch console:
A. An Entire Controller(a Left Controller + a Right Controller): Short press “HOME” key for 1s to power an Entire Controller on, the controller will be connected to the console automatically again
B. An independent Left Controller: Short press “Screenshot” key for 1s to power a Left Controller on, the controller will be connected to the console automatically again
C. An independent Right Controller:Short press HOME” key for 1s to power a Right Controller on, the controller will be connected to the console automatically again
Connecting a controller back to a Switch console
If a controller is in sleeping mode, short press “HOME” key or “Screenshot” key to wake it up, it will be connected to the console again automatically.
If a Switch console is in sleeping mode, first press the power button of the console to wake the console up then short press “HOME” or “Screenshot” key of the controller to connect the controller back to the console
If a Switch console is in sleeping mode, the console can't be woken up by directly pressing any key of the controller
Note: This pair of controllers is neither with NFC function nor with camera function. Built-in motors are none HD motors, vibration experiences might be different in some games
Games which need camera function and HD motor vibration function can't be played normally, such as Baby, Ball Count, Eating Contest etc.
LED indication instruction
Four LEDs blinking quickly and circularly.This controller is searching for wireless devices to be paired.
LED(s) solid bright: This controller is connecting to console normally via wireless.
LED(s) blinking quickly: This controller battery voltage is lower than 3.6V; ifthe voltage is lower than 3.4V, the controller will be shut off automatically and can't be powered on.
Four LEDs blinking slowly: This controller is being charged via connecting to a charger, four LEDs will be off after fully charged.
Controller parameter reference
Precautions
Please don't store this product in damp or high temperature places
Do not knock, beat, pierce or try to disintegrate this product so as not to damage it unnecessarily
Don'tdiscard it with garbage as this product is with a lithium battery built-in
Don't use this product near fire or heat sources
Unauthorized or non-professional personnel are not allowed to disassemble this product, otherwise it won't be in the scope of after-sales warranty

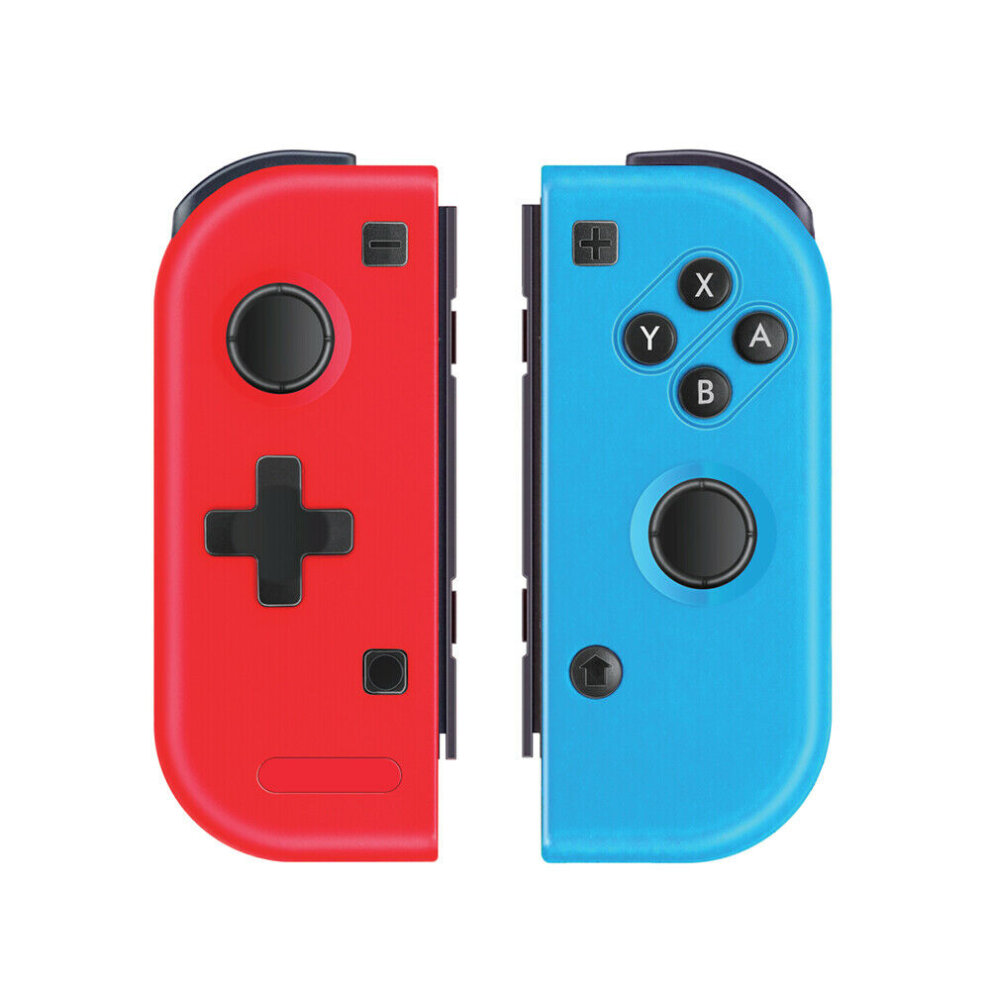

Features:
HOME key: Power controller on or execute commands from Switch console
D-Pad: Up, down, left and right. It can be easily operated on eight directions; it acts as a set of function control keys when using a Left Controller as an independent controller
Function control keys: A, B, X, Y. Perfect key design, sensitive and quick for finger operation
Left stick and Right stick: Neoteric 3D stick can be operated precisely on 360° all-round
Functional keys: L1, R1, L2, R2. Trigger and shoulder keys perform quick response function
Screenshot key: Take screenshot and store; it acts “HOME” key when using a Left Controller as an independent controller
Reset key: Short press this key in reset hole to power controller off to disconnect controller from console
Unlock key: Left unlock key and right unlock key. Press and hold the both unlock keys simultaneously to release Switch console
Specification:
Operating voltage DC 3.7V-4.2V
Operating current 20-30mA
Static current 10-80uA
Vibrating current 80-150mA
USB input voltage/current DC 5V/500mA
Available distance ≤8m Battery voltage/capacity 3.7V/300mAh
Controller power-on time Around 4h (fully charged)
Charging time Around 2h
Static time Around 25 days Net weight A pair of controllers: 80g (102g including acharging cable and a user guide)

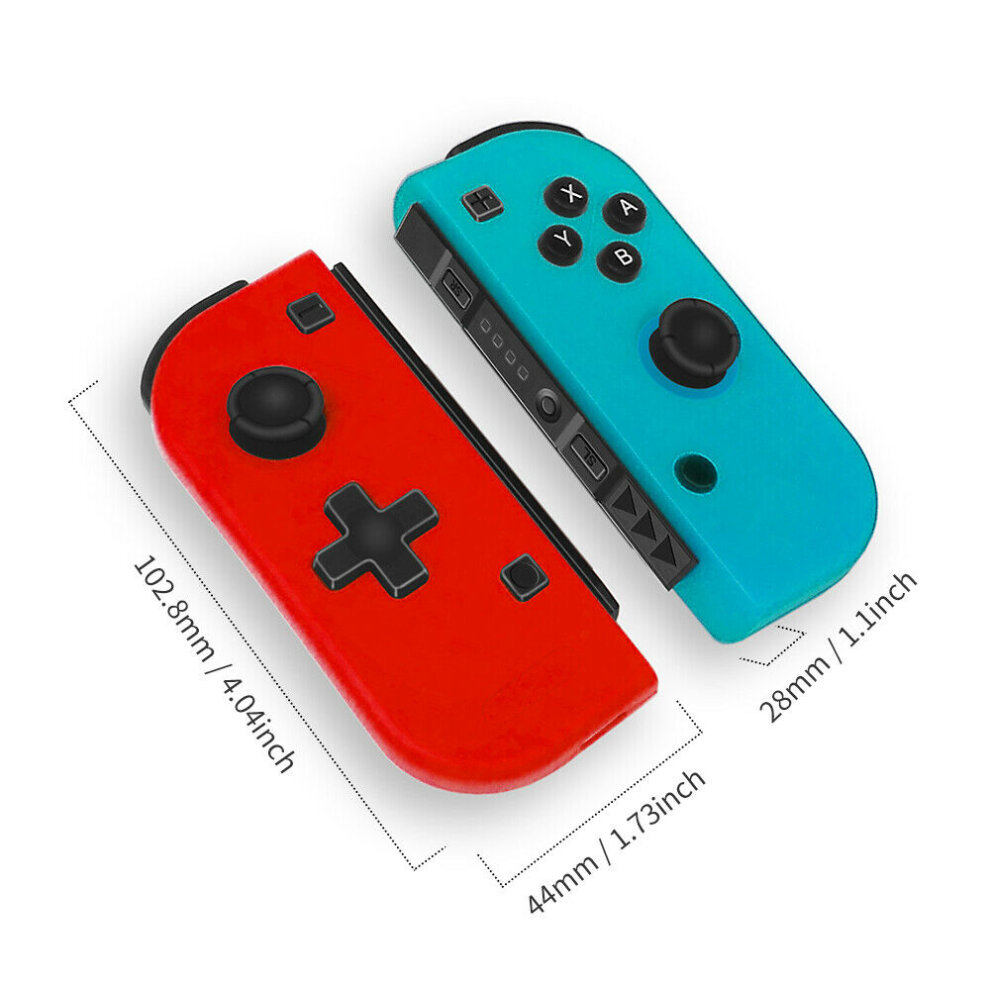

Dimension A single controller: 44 x 28 x 102.6mm

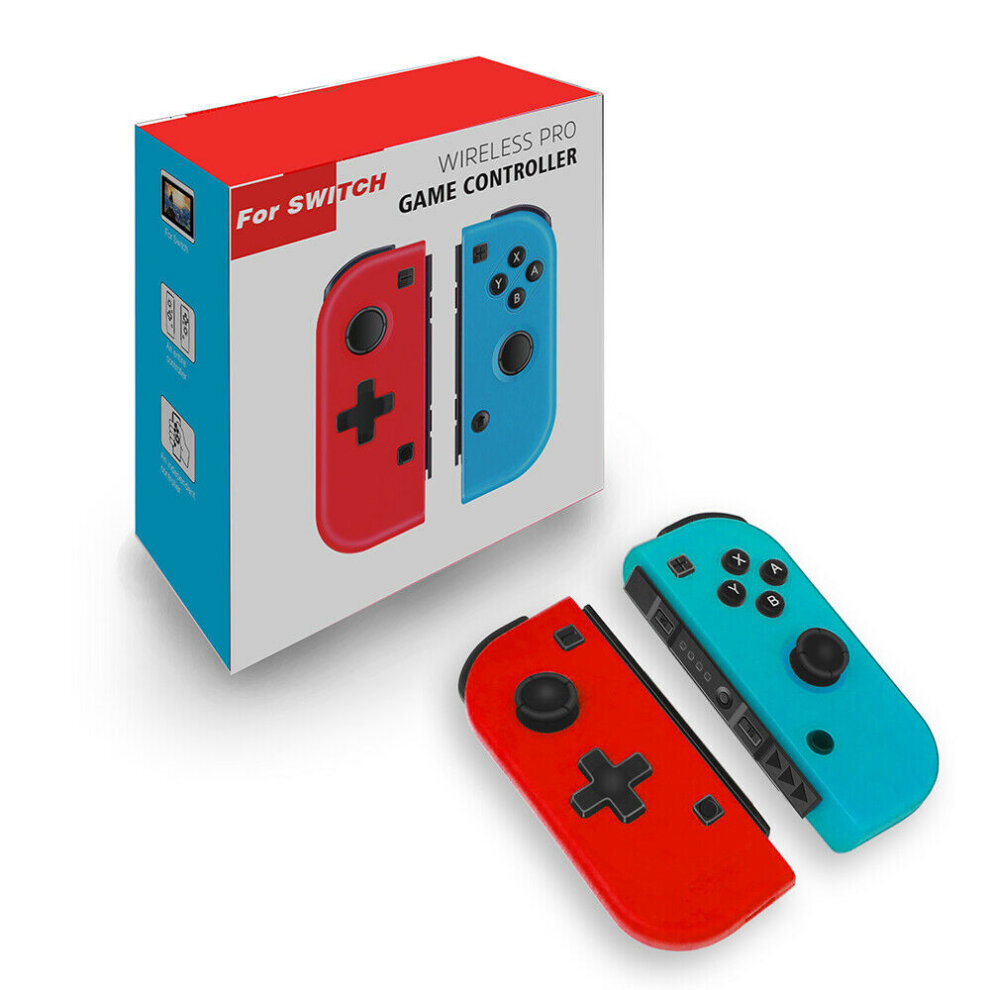

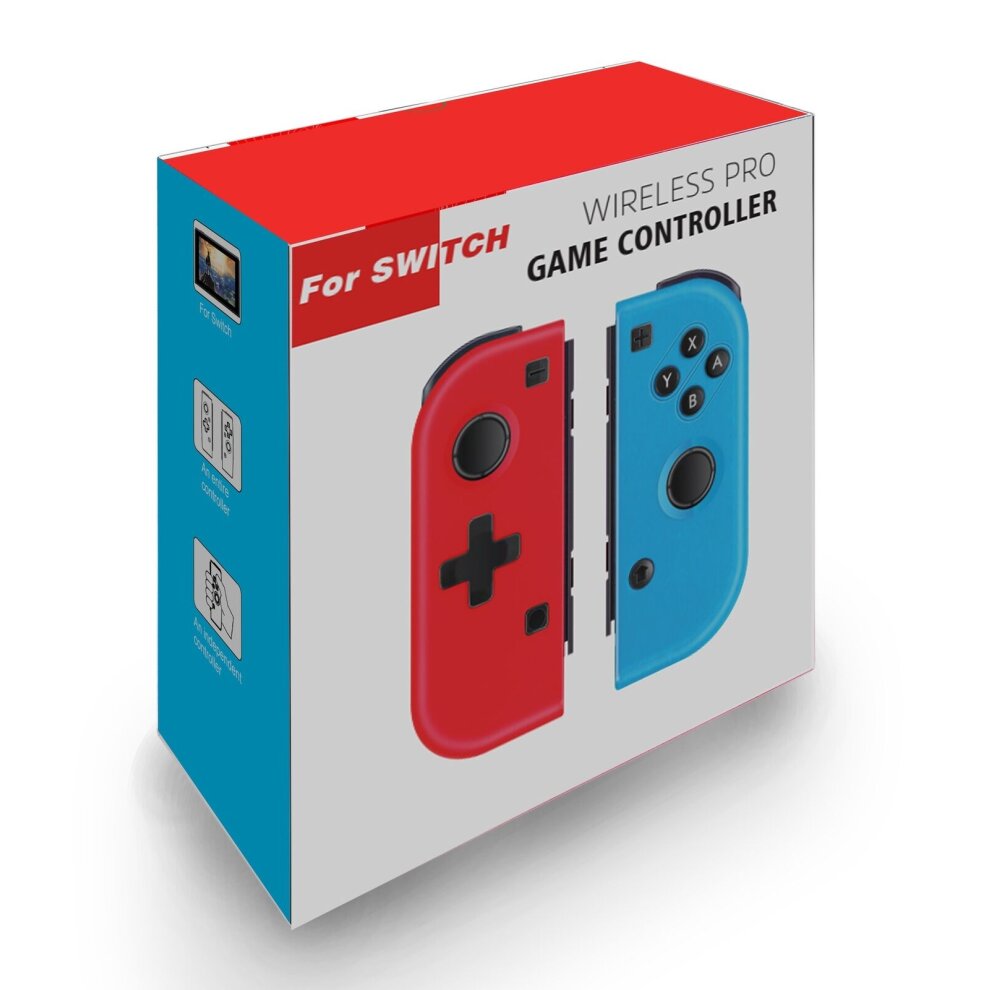

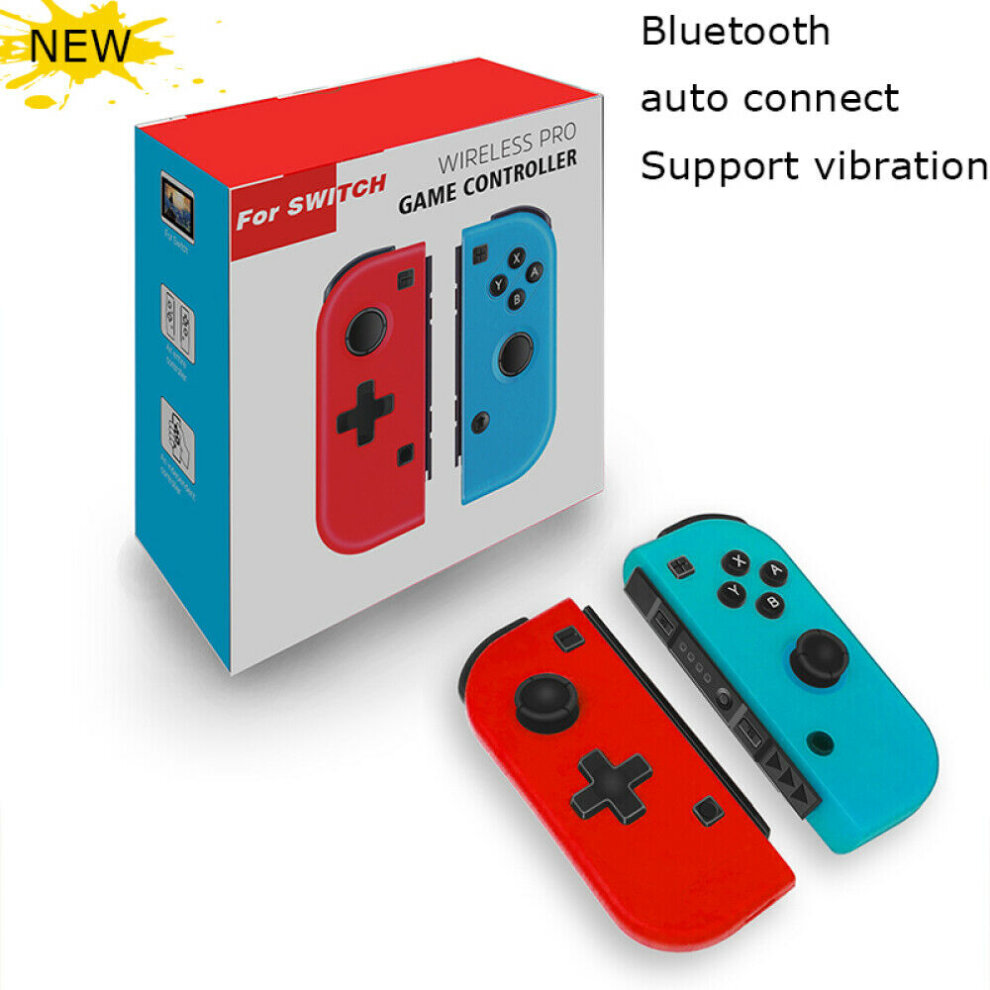

Package includes:
1 x Gamepad
1 x Charging Cable
1 x Manual Guide
Please note:
Please pair and connect each controller at this pairing pattern interface of a Switch console
